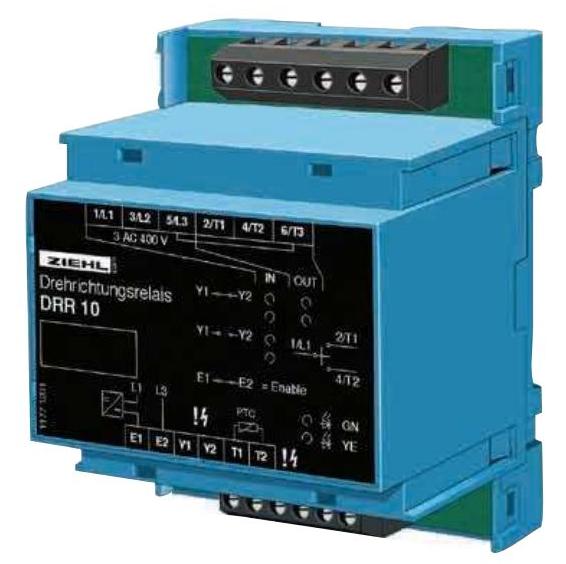

Phase-Sequence Relay DRR10

Technical Data

Rated supply voltage Us:   3 AC 400V, 50.60 Hz, <3 VA

Admissible tolerance US:   +10%/-20%

Relay output:   2x2 normally opened contacts (no)

Switching voltage:    max. AC 440 V

Conventional thermal current lth:   12A

Switch-on current (10% on):   30 A/max. 4 s, 60 A/max. 1 s

Rated ambient Temp. Range:   -20…+55 degC

Dimensions (H x W x D) mm:   90 x 70 x 58 mm

Protection Housing/Terminals:   IP 30/IP 20

Weight:   app. 230 g
