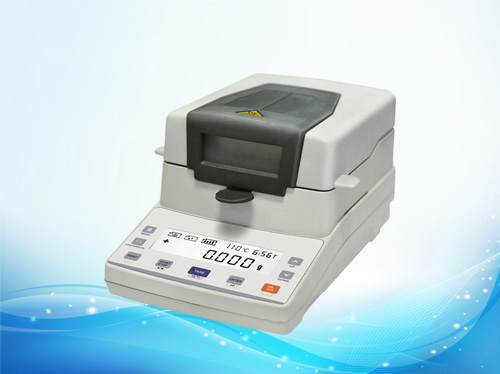

DW-MW Series Halogen Moisture Tester ค่าน้ำหนักสูงสุด: 0.2 kg / ค่าความละเอียด: ± 0.001 g
Technicl parameters
| Model | DW-110MW | DW-105MW | DW-102MW | DW-100MW | DW-200MW | |||
| Range(g) | 110 | 110 | 110 | 110 | 200g | |||
| Readability(g) | 0.01 | 0.005 | 0.002 | 0.001 | 0.001g | |||
| Operating Temp.Range | 5°C---35°C | |||||||
| Display | LCD | |||||||
| Calibration | External | |||||||
| Pan size（mm） | Φ90 | |||||||
| Dimensions(W*L*H) | 200*180*380 | |||||||
| Weight(Kg) | 5.8 | |||||||
| Heat source | Halogen lamp | |||||||
| Temp.sensor | PT-100 | |||||||
| Temp.range | 40°C---199°C | |||||||
| Temp.step | 1°C | |||||||
| Moisture range | 0.0%-100% | 0.00%---100% | ||||||
| Moisture readability | 0.2% | 0.1% | 0.04% | 0.01% | ||||
| Dry residual range | 100.00%---0.00% | |||||||
| Dry residual readability | 0.2% | 0.1% | 0.04% | 0.01% | ||||
| ATRO | 100%---999% | |||||||
| ATRO | 0%---999% | |||||||
| Temperature setting | 40°C---199°Cby1°Cstep | |||||||
| Time setting | 1---99min by 1s step | |||||||
| Autostop | 0.1%---9.9%within 1 min | |||||||
| Nuber of storage | 15 | |||||||
| Heater |
220V+15%50Hz 115V+15% 400W |
|||||||
| Interface | R232 | |||||||
| Balance |
External power supply Output: 9V Lnput: 220V+15%50Hz |
|||||||
