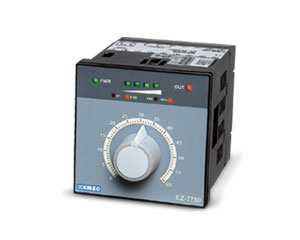

Analogue Scale Timer - EZ-7750

Housing&Mounting : 72mm x 72mm x 104mm DIN Size 43700 plastic housing for panel mounting. Panel cut-out is 9x69mm.

Protection Class : NEMA 4X (IP65 at front, IP20 at rear).

Weight : Approximately 0.30 Kg.

Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.

Storage/Operating Temperature : -40 C to +85 C / 0 C to +50 C

Storage/Operating Humidity : 90 % max. (None condensing)

Installation : Fixed installation

Overvoltage Category : II

Pollution Degree : II, office or workplace, none conductive pollution

Operating Conditions : Continuous

Supply Voltage and Power : 230V (±15%) 50/60 Hz. 4VA, 115V (±15%) 50/60 Hz. 4VA

24V (±15%) 50/60 Hz. 4VA

Resolution of Set Point : ± 0.2% of full scale

Accuracy of Set Point : ±1%

Relay Output : 5A@250V (Electrical Life : 100.000 Operation (Full Load))

Transistor Output : Maximum 50mA@12V NPN

LED Indicators : PWR (Green) , OUT (Red) ,Sec (Second)(Red) , Min(Minute) (Red) , X1 (Red) , X10 (Red) ,

Expired Time Leds : 4 pieces of led (Green)
