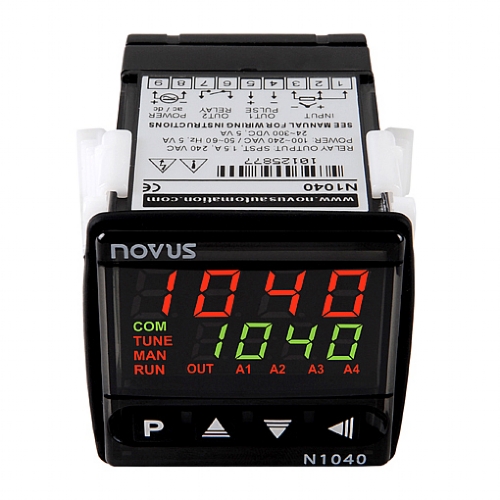

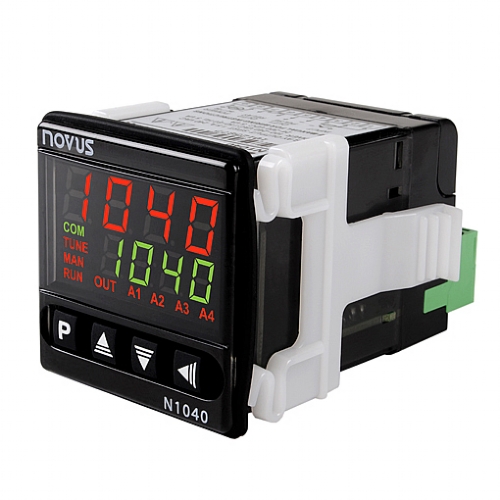

Time and Temperature Controller N1040T

• Accepts thermocouples J, K, T and Pt100 RTD without any hardware change or recalibration
• Auto tuning PID
• Output: 2 relays SPST 1,5 A, 1 relay SPDT 3 A and 5 Vcc logic pulse (ideal for enabling Solid State Relays)
• The outputs are programmable for main control or alarm
• Alarm functions: low, high, differential, low differential, high differential, sensor break
• Two alarm functions can be directed to one single output
• Switching power supply 100~240 Vac, 24 Vdc optional
• Safe output function allows the user to set control output conditions in case of sensor break or failure
• Digital input
• Simplified programming menu makes operator programming easily
• Indelible electronic serial number with 8 digits can be accessed from the display
• Count up and countdown timer
• Adjustable break timing until 99:59 (mm:ss)
• Timer enabling through digital input, Set Point, keypad or by enabling the temperature control
• Timer output can be switched when the time finishes
• Silicone rubber keypad
• Front panel protecion: IP65
• CE and UL certification

Datasheet
