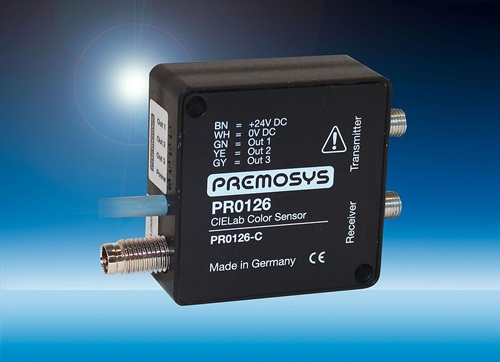

CIELab Color Sensor รุ่น PR0126-C



รายละเอียดสินค้า :

- Testing parameters for colors “ab” and intensity “L”

- 3/7 products can be taught on the sensor without respect to gain

- Automatic gain adjustment (Sensitivity)

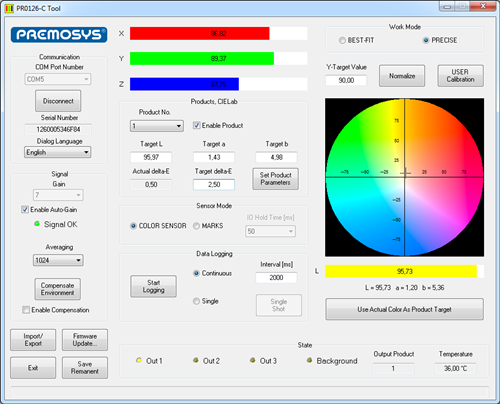

- Multi-language software tool

- User calibration

- Switching frequency 500 Hz

- Light source: LED white, 5600 Kelvin

- Software automatically calculates the full Delta E

- Temperature compensation over 18 to 55 deg. C

- Color calibration with very high Inter-Instrument Agreement <1 %

- Supply voltage 24 V DC +/- 5%

- Wavelength range 400 nm to 700 nm

- Serial and parallel interface – can be used together

- Coated aluminum housing
