>> UV Sensor / Amplifier
>> SiC UV Photodiodes   [3]
>>
16

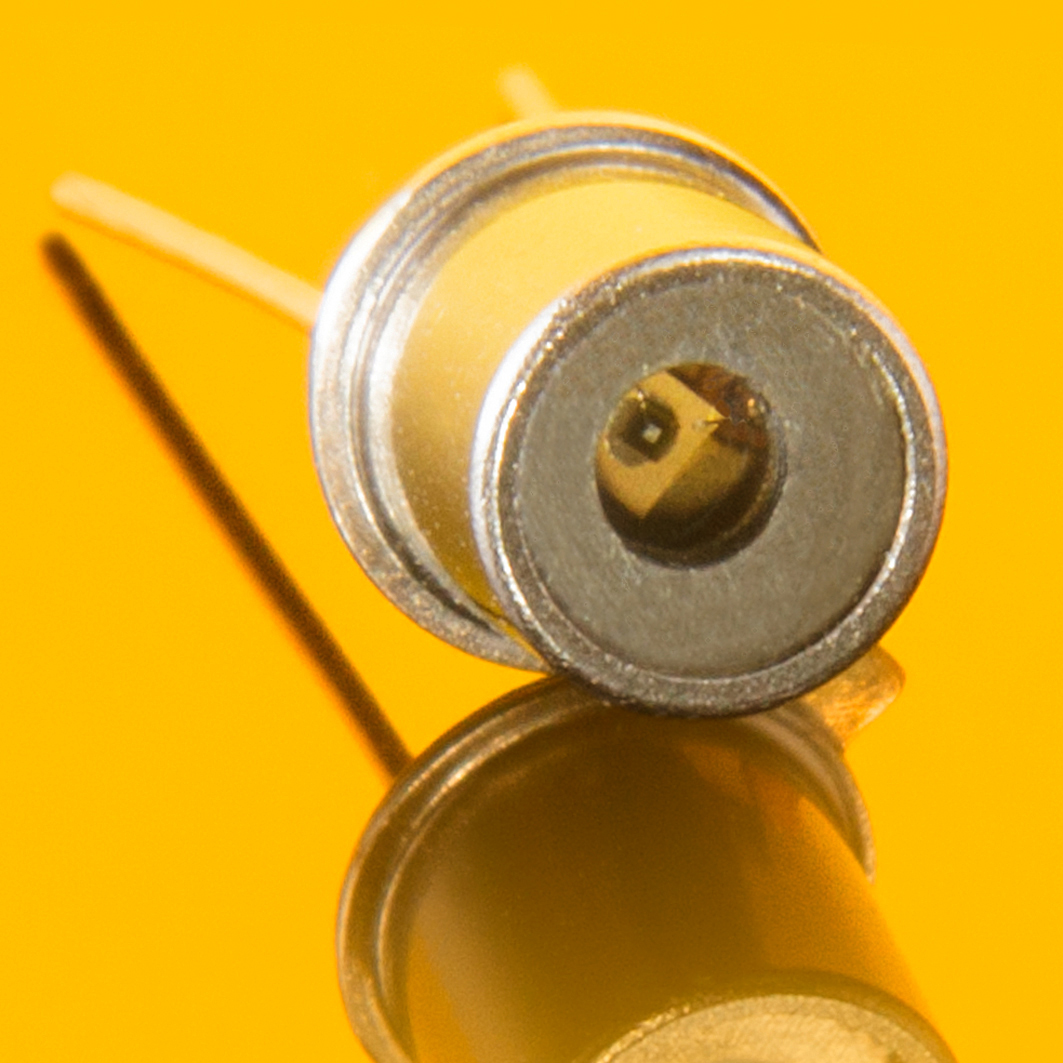

SG01S-A18 / UVA

Properties of the SG01S-A18 UV photodiode

   - UVA-only sensitivity, PTB tested high chip stability
   - Active Area A = 0,06 mm2
   - TO18 hermetically sealed housing
   - 10mW/cm2 radiation at 335nm results a current of approx. 360nA

Datasheet
