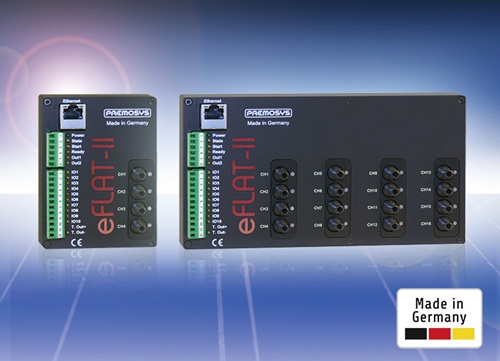

LED Analyzer and Test System รุ่น eFLAT-II
รายละเอียดสินค้า :
- 4 to 16 optical channels for parallel measurement
- Sensitivity 3.5 to 10,000,000 Lux
- Measuring times with transmission of the measuring results 20 ms (8-channel system)
- Measurements are output in x, y, Y, color temperature and dominant wavelength
- Spectral resolution to 1 nm
- Testing of flashing LEDs
- Wavelength range 400 - 700 nm
- Optical display of results for each measuring channel
- Up to 255 user calibrations per measuring channel
- Lux calibration by user is possible
- Fast Ethernet and digital interface on Board
- Supply voltage 12 to 27 V DC, max. 0.3 A (at 12 V)

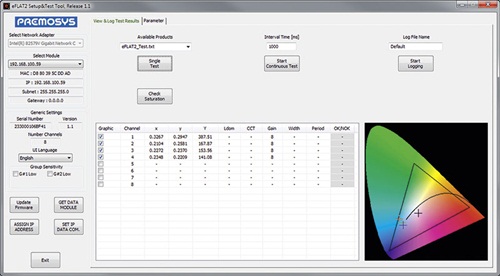

- Multi-language software tool
- Optional WIN 32 Low Level DLL
Datasheet
