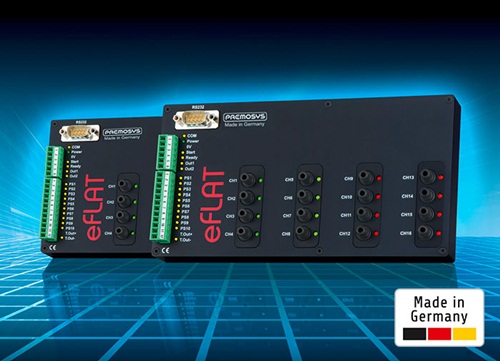

LED Analyzer and Test System รุ่น eFLAT



รายละเอียดสินค้า :
- 16 optical channels for parallel measurement
- Sensitivity 3.5 to 10,000,000 Lux
- Measuring times approx. 25 ms per cycle for all channels
- Measured values output in x, y, Y, color temperature and dominant wavelength
- Spectral resolution to 1 nm
- Testing of flashing LEDs
- Detectable wavelengths 400 - 700 nm
- Optical results display for each measuring channel
- Up to 255 user calibrations per measuring channel
- Lux calibration by user possible
- Serial and digital interface onboard
- Supply voltage 12 to 27 V DC, max. 0.3 A (at 12 V)

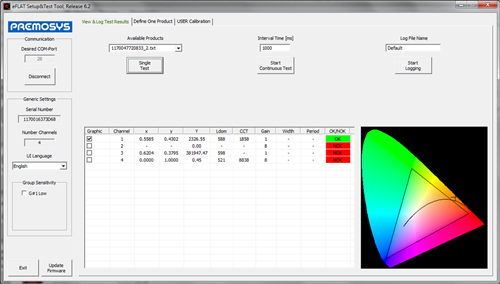

- Multi-language software tool
- Optional WIN 32 Low Level DLL


Datasheet
