Product Category


39
>> Hour meter /Timer / Counter
>> Hour meter / มิเตอร์นับชั่วโมง   [1]
>>
4

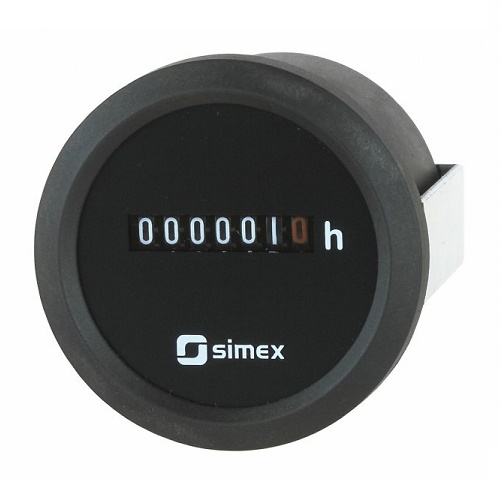

SLC-47-A
Power supply standard: DC: 10-80 V ± 10%; on request: AC: 24, 48, 60, 110, 120, 230, 240 V, 400 V ± 10%, 50/60 Hz; DC: 6-30, 110, 220 V ± 10%
Current consumption AC: max. 8 mA; DC: max. 9 mA
Storage temperature AC: -40°C ÷ +80°C; DC: -20°C ÷ +70°C
Operating temperature AC: -25°C ÷ +80°C; DC: -20°C ÷ +70°C
Protection class IP 67 front, IP 00 terminals
Display AC: 5 integers, 2 decimals; DC: 6 integers, 1 decimal; AC indicator; digit height: 4 mm
Displayed values range AC: 99999,99 h; DC: 999999,9 h
Mounting panel
Reset without reset
Accuracy AC: 1/100 h (36 s); DC: 1/10 h (6 min)
Case dimensions Ø 58 mm, depth 56 mm (SLC-47-A); Ø 80 mm, depth 61 mm (SLC-47-C)
Panel cut-out dimensions Ø 51 mm (SLC-47-A); Ø 72 mm (SLC-47-C)

Datasheet
