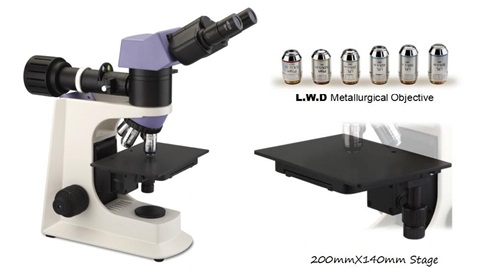

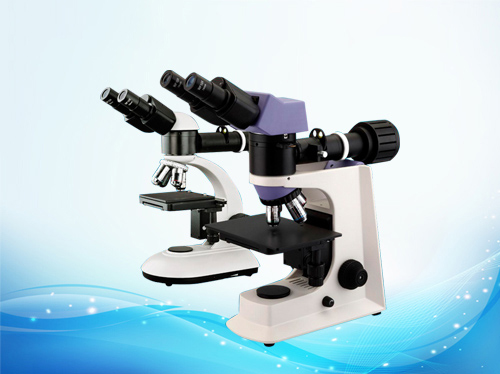

Metallurgical Microscope รุ่น MIT100&200
MIT100 Metallurgical Microscope Size（mm）
MIT100/200 Metallurgical Microscope Outfits
| Items | Specification | MIT100 | MIT200 | |
| Eyepiece | WF10×-18mm | Y | Y | |
| Reticule Eyepiece WF 10×-18 mm (0.1mm) | Y | Y | ||
| WF5× | o | o | ||
| WF12.5× | o | o | ||
| WF16× | o | o | ||
|
Infinity Plan Objective (no cover glass) |
5×/0.11 | W.D=12.10mm | Y | Y |
| 10×/0.25 | W.D=4.75mm | Y | Y | |
| 20×/ 0.4 (S) | W.D=2.14mm | o | o | |
| 40×/0.65 (S) | W.D=0.45mm | o | o | |
|
Long Working Distance Infinity Plan Objective (no cover glass) |
20×/0.4 (S) | W.D=8.35mm | o | Y |
| 40×/0.65 (S) | W.D=3.90mm | Y | o | |
| 50×/0.7(S) | W.D=1.95mm | o | Y | |
| 80×/0.8 (S) | W.D=0.85mm | o | o | |
| Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50 -75mm |
Y | Y | |
| Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50 -75mm Light Distribution: 80:20 |
o | o | |
| Nosepiece | Quadplex | Y | Y | |
| Mechanical Stage |
Stage Size: 200×140mm, Travel : 76mm×52mm Coaxial Coarse and Fine Focusing Knobs |
Y | Y | |
| Reflection Illumination | 6V/20W Halogen Lamp | Y | ||
| 6V/30W Halogen Lamp | Y | |||
| Filter | Five-hole filter unit(blue, green, amber, grey, empty) | Y | Y | |
| Polarizing Attachment | Analyzer/ Polarizer | o | ||
| C-mount | 1× | o | o | |
| 0.47× （Focus Adjustable） | o | |||
| 0.5X （Focus Adjustable） | o | |||
Note: "Y"In Table Is Standard outfits, "o" Is Optional Accessories.
MIT100 Packing Size: 565mm×310mm×410mm Gross Weight: 9 kgs Net Weight: 6 kgs
MIT200 Packing Size: 570mm×275mm×450mm Gross Weight: 10.5 kgs Net Weight: 8 kgs
