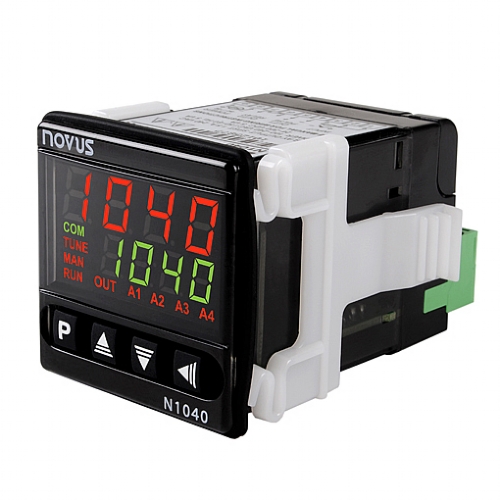

Temperature Controller N1040

• Accepts thermocouples J, K, T and Pt100 RTD without any hardware change or recalibration
• Auto tuning of PID parameters
• Outputs: logic pulse (ideal for driving solid state relays) and 1 SPST relay
• The outputs are programmable for main control or alarm
• Alarm functions: low, high, differential, low differential, high differential, sensor break
• Two alarm functions can be directed to one single output
• A very efficient universal switching power supply provides high accuracy conditions even during mains voltage fluctuations
• Safe output function allows the user to set control output conditions in case of sensor break or failure
• LBD (Loop Break Detection) function detects failures in the control loop
• Simplified programming menu makes operator programming very easy
• Indelible electronic serial number with 8 digits can be accessed from the display
• Keypad protection prevents unauthorized programming changes
• Silicone rubber frontal keypad
• Front panel protecion: IP65
