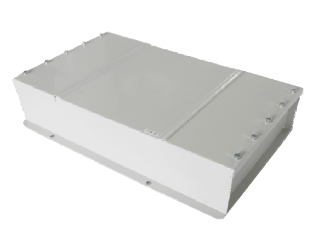

LINE FILTER รุ่น 8020 series High performance power line filters for shielded rooms 250VAC/500VDC, 16 - 1,600(A)
Technical data
| Rate voltage VR for two-line filters | 250VAC/500VDC | line-line or line-case |
| Rate voltage VR for four-line filters | 440VAC | line-line |
| 250VAC | line-case | |
| Rated Frequency fR | DC -60 Hz | |
| Rate Current IR | See characteristics | referred to +40? ambient temperature |
| Number of lines | 2/4 | |
| Test voltage | 1200Vdc/2s | Line- Line or line-case |
| Voltage drop/phase ΔV | <1% | of VR at 50Hz and IR |
| Leakage current I Leakage | See characteristics | at 380V/220V and 50Hz |
| Reactive Current I Reactive | See characteristics | at 380V/220V and 50Hz |
| Discharge Time to Below 34V | 30S | |
| Climatic category | 25/070/21 |
Product Range
| Type | IR (A) | I Leakage (A)* | I Reactive (A) | Terminal connection | Shielding Effectiveness (dB) | |
| In | Out | |||||
| 8020-2-16 | 2×16 | 0.02 | 1.7 | M6 Screw | M6 Screw | 100dB, 14Khz ~ 40Ghz |
| 8020-2-32 | 2×32 | 0.02 | 1.7 | M6 Screw | M6 Screw | |
| 8020-2-63 | 2×63 | 0.02 | 1.7 | M6 Screw | M6 Screw | |
| 8020-2-100 | 2×100 | 0.15 | 7.0 | M12 Screw | M12 Screw | |
| 8020-2-200 | 2×200 | 0.15 | 7.0 | M12 Screw | M12 Screw | |
| 8020-2-250 | 2×250 | 0.15 | 7.0 | M12 Screw | M12 Screw | |
| 8020-2-400 | 2×400 | 0.30 | 7.0 | Bus bar | Bus bar | |
| 8020-2-630 | 2×630 | 0.45 | 7.0 | Bus bar | Bus bar | |
| 8020-2-800 | 2×800 | 0.58 | 7.0 | Bus bar | Bus bar | |
| 8020-2-1000 | 2×1000 | 0.58 | 7.0 | Bus bar | Bus bar | |
| 8020-4-16 | 4×16 | 0.005 | 1.7 | M6 Screw | M6 Screw | |
| 8020-4-32 | 4×32 | 0.005 | 1.7 | M6 Screw | M6 Screw | |
| 8020-4-63 | 4×63 | 0.005 | 1.7 | M6 Screw | M6 Screw | |
| 8020-4-100 | 4×100 | 0.05 | 7.0 | M12 Screw | M12 Screw | |
| 8020-4-200 | 4×200 | 0.05 | 7.0 | M12 Screw | M12 Screw | |
| 8020-4-250 | 4×250 | 0.05 | 7.0 | M12 Screw | M12 Screw | |
| 8020-4-400 | 4×400 | 0.08 | 7.0 | Bus bar | Bus bar | |
| 8020-4-630 | 4×630 | 0.1 | 7.0 | Bus bar | Bus bar | |
| 8020-4-800 | 4×800 | 0.12 | 7.0 | Bus bar | Bus bar | |
| 8020-4-1000 | 4×1000 | 0.12 | 7.0 | Bus bar | Bus bar | |
| 8020-4-1200 | 4×1200 | 0.18 | 7.0 | Bus bar | Bus bar | |
| 8020-4-1400 | 4×1400 | 0.18 | 7.0 | Bus bar | Bus bar | |
| 8020-4-1600 | 4×1600 | 0.24 | 7.0 | Bus bar | Bus bar | |
