39
>>
Hour meter /Timer / Counter
>>
Timer / Counter
[2]
>>
15

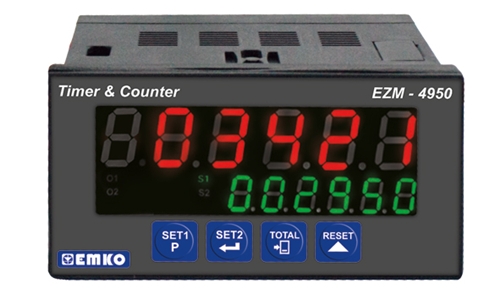

Multifunctional Programmable Timer and Counter with RS 232/485 Serial Communication Unit - EZM-4950
Display and Front Panel | |
Buttons | Set, Reset, direction and enter buttons |
Led Indicators | S1 (Set1 value), S2 (Set2 value), Q1, O2 (Control or Alarm output) LEDs |
Actual Value Display | 13,2 mm Red 6 digits LED display |
Set Display | 8 mm Green 6 digits LED display |
Body | |
Physical Features | 96 mm x 48 mm 86,5 mm |
Protection Class | NEMA 4X (IP65 at front, IP20 at rear) |
Weight | Approximately 0.21 Kg. |
Installation | Fixed Installation |
Electrical Features | |
Supply Voltage and Power |
100-240 V ~ (-15%,+10%) 50/60 Hz. 6 VA 24 V ~ (-15%,+10%) 50/60 Hz. 6 VA 24 Vdc (-15%,+10%) 6 W |
Digital Inputs |
Rated Voltage 16Vdc@5mA Maximum continous permissable voltage 30 Vdc Logic 1 minimum level 3 Vdc Logic 0 maximum level 2 Vdc |
Sensor Supply Voltage | 14 V ± 35% maximum 50 mA (230 V) |
12 V ± 40% maximum 50 mA (115 V) | |
Maximum Input Frequency | For Counter, Total Counter and Batch Counter |
6000 Hz for Pro-01= 0, 1, 2 | |
4000 Hz for Pro-01= 3, 4 | |
3500 Hz for Pro-01= 5, 6 | |
2000 Hz for Pro-01= 7 | |
For Frequencymeter and tachometer 10 kHz | |
30 Hz when Pro-04 does not equal to 000000 | |
Outputs | |
Optional Output Modules | EM0-400 Relay Output Module (3A@250V) |
EM0-410 SSR Output Module (20mA@18V) | |
EM0-420 Digital (Transistor) Output Module (40mA@18V) | |
Standard Communication Modules | EMC-400 RS-232 Communication Module |
Optional Communication Module | EMC-410 RS-485 Communication Module |
Communication Protocol | MODBUS-ASCII or RTU |
Quality Standarts | |
Approvals | UL Recognized Component (File No : E 254103), GOST-R, CE |
