เครื่องวัดฝุ่น - Air Quality
>>
Mobile fine dust monitors
[3]
>>
3

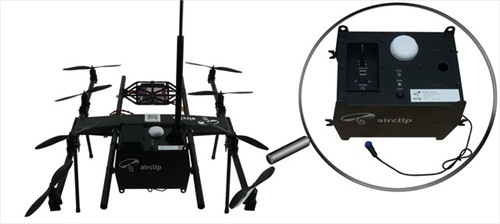

เครื่องวัดฝุ่นแบบพกพา รุ่น Fidas® Fly200
| Interfaces | USB, Wi-Fi |
|---|---|
| Measurement range (size) | 0.18 – 40 µm (2 measuring ranges) |
| Size channels | 64 (32/decade) |
| Measuring principle | Optical light-scattering |
| Measurement range (number CN) | 0 – 20000 particles/cm^3 |
| Time resolution | 1 s – 24 h |
| Volume flow | 1.4 l/min |
| Dimensions | 10.5 • 37.5 • 17.5 cm (H • W • D, sensor only) |
| Weight | Approx. 4 kg, tare weight: 1.9 kg |
| Data logger storage | 4 GB |
| Measurement range (mass) | 0 – 1500 μg/m^3 |
| Reported data | PM_1, PM_2.5, PM_4, PM_10, TSP, C_N, particle size distribution |
| flight time | Approx. 20 min. |
| maximum useful load | 4.5 kg (flight robot) |
