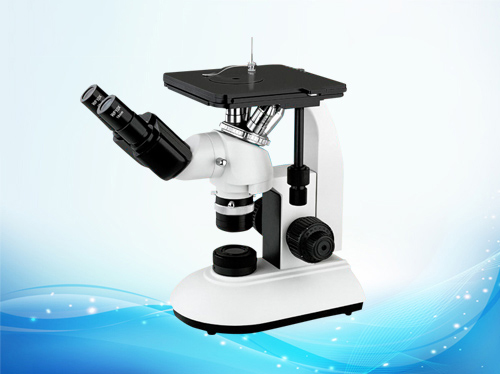

MDJ Metallurgical Microscope
.jpg)
MDJ Metallurgical Microscope Outfits
| Items | Specifications | MDJ100 | MDJ200 | |
| Eyepieces | WF10×/Φ18 | Y | YY | |
| WF12.5×/Φ14 | o | oo | ||
| WF16×/Φ13 | o | oo | ||
| Huygenian Eyepieces 5×/Φ20 | o | oo | ||
| WF10×/(Reticule, 0.1mm) | o | oo | ||
| Plan Achromatic Objectives | Plan 10×/0.25 | Y | Y | |
| Plan 40×/0.65 (S) | Y | Y | ||
| Plan 100×/1.25 (S) (Oil) | Y | Y | ||
| Plan 4×/0.10 | o | o | ||
| Plan 20×/0.35 (S) | o | o | ||
|
Long Working Distance Plan Objectives |
PL L 40×/0.60 | W.D=3.64mm | o | o |
| PL L 50×/0.70 | W.D=3.01mm | o | o | |
| PL L 80×/0.80(S) | W.D=1.08mm | o | o | |
| Binocular Head | Inclined 45º | Y | ||
| Monocular Head | Inclined 45º | Y | ||
| Nosepiece | Quadplex | Y | Y | |
| Mechanical Stage |
Size: 180×180mm Travel Range: 50×40mm |
Y | Y | |
| Stage Plate | 1 (Φ10) | Y | Y | |
| 2 (Φ20) | Y | Y | ||
| 3 (Φ40) | o | o | ||
| Set of Stage Plate | Y | Y | ||
| Main Body | Y | Y | ||
| 6V/20W Halogen Lamp | Input voltage：100V～240V | o | o | |
| 3W-LED Lamp | Y | Y | ||
| Filters | Blue, Green, Grey | Y | Y | |
| Micrometer | Division 0.01mm | o | o | |
